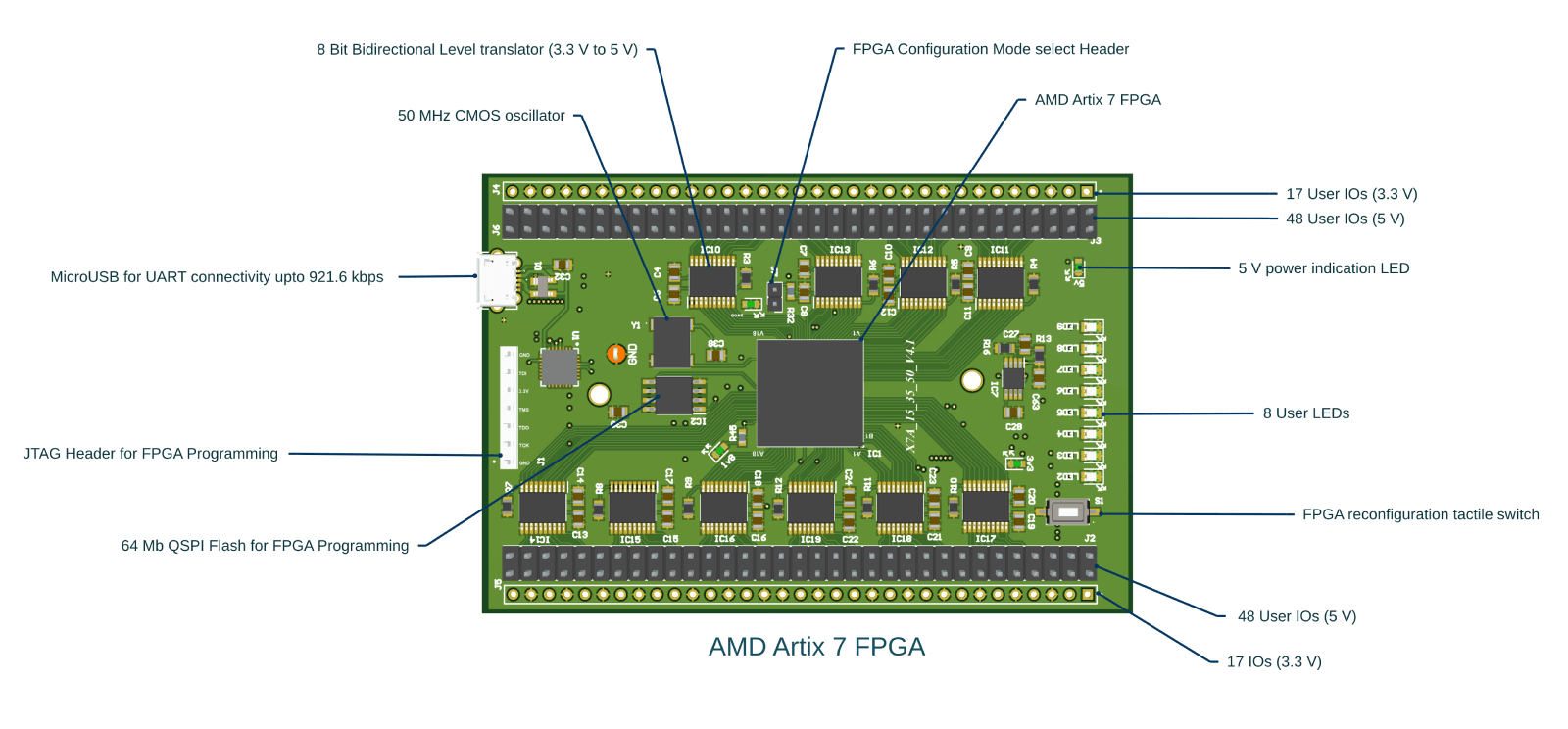

Salient Features:

1. AMD Artix 7 FPGA. Programming is through Vivado Software.
2. 130 User IOs available. 96 are 5 V and 34 are 3.3V compatible.
3. 8 User LEDs available.
4. UART over MicroUSB connector. Supports baudrate up to 921.6 kbps.
5. 64 Mb QSPI flash for FPGA configuration.
6. 50 MHz CMOS oscillator.
7. Digilent HS2/HS3 or AMD (formerly Xilinx) Platform USB II compatible JTAG Header.
8. JTAG or Slave serial mode select option.
9. Small form factor. Pin Compatible with Humandata Boards footprint.
10. FPGA reconfiguration tactile switch available.
11. Board power good indication on 5 V, 3.3 V, 1.8 V LEDs
12. Make in India.
